The F22c RGBWW LED Mat is a powerful, versatile, and flexible LED mat that measures 2 x 2'. It offers outstanding light output and colour rendering suitable for a variety of users, from filmmakers to videographers, content creators, and still photographers. Providing 200W of power, it features RGBWW LEDs for complete colour control, as well as tunable CCT from 2500K to 7500K, providing endless possibilities for creative lighting selections through 360° HSI control, 46 colour gel presets, and 15 unique customisable lighting effects. It has stellar CRI and TLCI scores of 95+ and 97+, and stepless dimming from 0 to 100%.
An included folding X-frame stretches the mat to a rigid panel that can be attached directly to a C-stand grip head using the straight Baby Pin adapter, or onto any standard light stand with the included right-angle Baby Pin and tilting stand mount. The included foldable softbox has two strengths of diffusion and a fabric grid that uses an integrated hook-and-loop fabric to instantly turn this flexible mat into an ultrathin soft light that will add a beautifully controlled soft light to a scene.
The control box is a multi-voltage AC power supply that features a V-mount battery plate for use with compatible 14.4V, 26V, or 28.8V batteries. Full output can be achieved when using the AC power supply, using batteries allows the F22c to be used at either half or full power, depending on battery strength.
The free Sidus Link app makes it possible to utilise tools unique to the Aputure and Amaran ecosystems, such as Source Match, Colour Picker, and Custom FX. The F22c can also be controlled using DMX with a separately available USB-C to 5-Pin DMX512 in & out adapter cable, adding professional-level control to an individual unit or groups of lights. The Amaran F22c is ideal for videographers who need a versatile and literally flexible lighting solution. The RGBWW flexible panel gives users unmatched strength and control over a wide, expanded CCT range to match a variety of white light environments.
Features
Specifications
Photometrics | 2500K: |
Colour Temperature | 2500 to 7500K |
Colour Modes | RGBWW |
Colour Accuracy Standard | CRI 95 |
Cooling System | Passive |
Dimming | Yes, 0 to 100% (Continuous) |
Display | OLED |
Housing Material | Plastic |
Expected Lamp Life | 50000 Hours |
Rectangular Panel Size | 23.6 x 23.6" / 60 x 60 cm |
Fixture Dimensions | 23.6 x 23.6 x 0.2" / 60.0 x 60.0 x 0.5 cm |
Fixture Weight | 1.94 lb / 0.88 kg |
Battery Plate | 1 x V-Mount |
Power Input Connection | XLR 3-Pin |
Fixture Mount | 5/8" Stud |
Remote Control Type | Bluetooth, DMX |
Wireless Range | 262.5' / 80 m (Bluetooth) |
AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
DC Input Power | 12 to 33.6 VDC |
Power Source | AC Power, External Battery |
Max Power Consumption | 240 W |
Power Pass-Thru | No |
Power Supply Output | 48 VDC |
Power Supply Weight | 2.4 lb / 1.1 kg |
Certifications | CE, FCC, RoHS, cTUVus, as per Manufacturer |
Operating Temperature | 14 to 104°F / -10 to 40°C (Recommended) |
*Please note: Lifestyle images are used for illustration purposes only. Light stand is not included. Please see 'What's Included' section for full product inclusions.
What's Included
1 x Amaran F22c RGBWW LED Mat (V-Mount, 2 x 2')
1 x Control Box with V-Mount Battery Plate

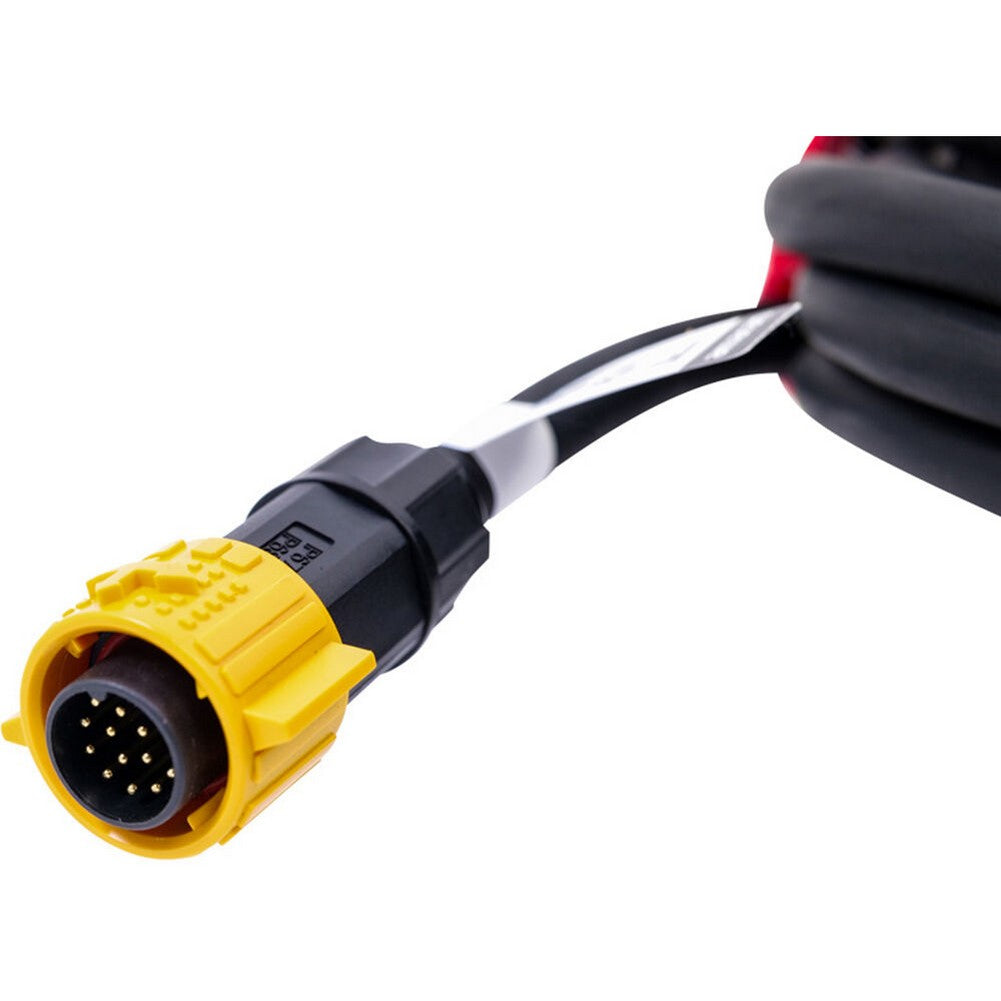

1 x 9.8' Head Extension Cable
1 x Support Bracket
1 x Right-Angle Baby Pin Adapter
1 x Straight Baby Pin Adapter
1 x Tilting Stand Mount
1 x F22 Softbox Frame
1 x F22 Diffusion Cloth 1 (1/2 Grid Cloth)
1 x F22 Diffusion Cloth 2 (2.5 Stop)
1 x F22 45 ° Light Control Grid
1 x Multi-Voltage AC Power Supply
1 x AC Power Cable
1 x Carrying Case
