Please note: This item is Demo Stock. It has been on display in our Showroom so minor cosmetic marks may be present. It has been tested and functions as new, with all original accessories and packaging included.

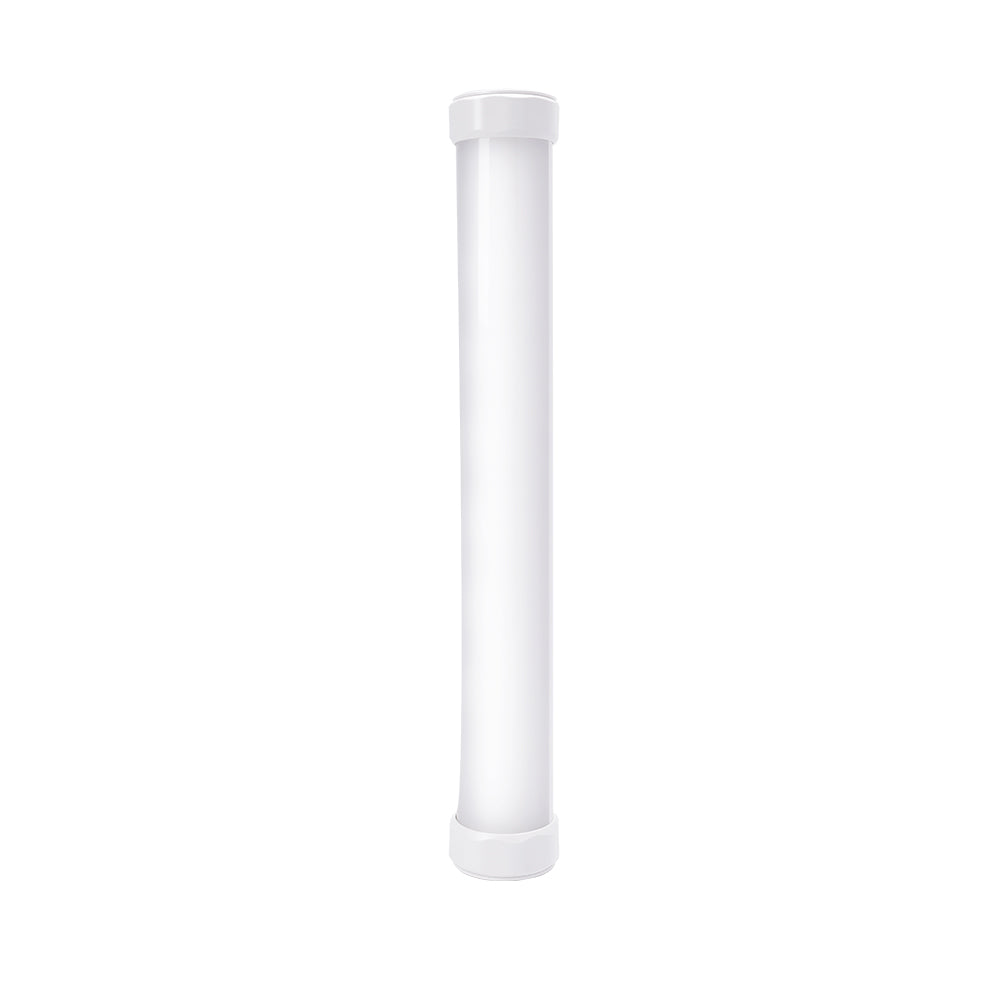

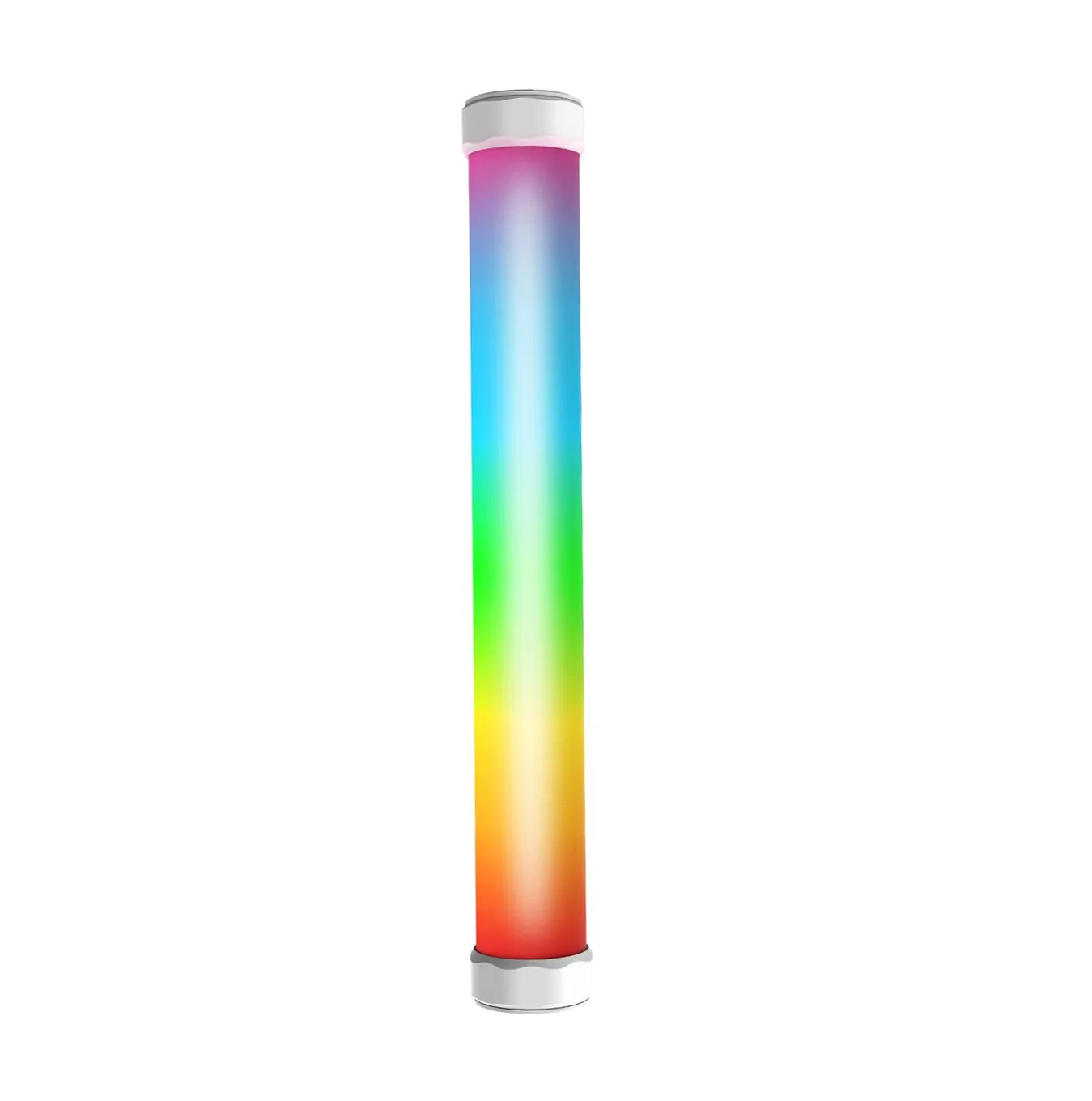

The Amaran PT1c is a compact, ultra-portable, 1-foot, battery-powered pixel tube from Amaran’s first full-colour LED pixel tube series. It offers versatile lighting with 4 independently controlled pixels, 7 pre-programmed Pixel FX, and 9 System FX, all accessible via the Sidus Link app or DMX control.
The RGBWW LED chipset provides high-quality colour with a CCT range of 2,700K to 10,000K, achieving excellent colour accuracy (CRI 95, TLCI 98, SSI values). Its wide 180° beam angle, high transmittance diffuser, and 45º Fabric Light Control Grid make it extremely versatile. It is ideal for product cinematography and photography, with each of its 4 pixels offering independent control for customised lighting.
Powered by a removable 9.6Wh Lithium-ion battery, it lasts up to 70 minutes on maximum output. The PT1c features magnetised, rotatable end caps and 3/8-16in threaded mounts for easy mounting on light stands or arms. It can be controlled via its intuitive back interface, Sidus Link app, or DMX with an optional USB-C to 5-Pin XLR adapter.
With a simple design, fast charging (under 2 hours), and easy mounting options, the PT1c is perfect for creators looking for a portable, high-quality lighting solution with unique pixel effects.
CCT | 0.5m | 1.0m |
2,700K | lux / 30 fc | lux / 8 fc |
3,200K | lux / 31 fc | lux / 8 fc |
4,300K | lux / 32 fc | lux / 8 fc |
5,600K | lux / 33 fc | lux / 9 fc |
6,500K | lux / 33 fc | lux / 9 fc |
7,500K | lux / 31 fc | lux / 8 fc |
10,000K | lux / 29 fc | lux / 8 fc |
Red | lux / 22 fc | lux / 6 fc |
Green | lux / 31 fc | lux / 9 fc |
Blue | lux / 7 fc | lux / 2 fc |
Features
Specifications
CCT | 2,700K – 10,000K | |
CRI (@ 5,600K) | 95 | |
TLCI (@ 5,600K) | 98 | |
CQS (@ 5,600K) | 96 | |
SSI (D56) | 75 | |
SSI (Tungsten) | 85 | |
TM-30 RF (@ 5,600K) | 92 | |
TM-30 RG (@ 5,600K) | 100 | |
Max Power Output | 6W | |
Max Power Draw | 8W | |
Pixel Mapping | Pixels | |
Lumens | 370lm | |
Beam Angle | 180º | |
Charging Input | USB Type-C | |
Battery Voltage | 3.7V | |
Battery Capacity | 2600mAh, 9.6Wh | |
Battery Runtime | Approx. 70 Mins @ 100% Output Approx. 95 Mins @ 75% Output Approx. 139 Mins @ 50% Output Approx. 369 Mins @ 10% Output | |
Charge Time | Approx. 110 Mins (5V/2A) | |
Operating Temperature | -10°C ~ 40°C / 14°F ~ 104°F | |
Control Methods | On-board, Sidus Link App, DMX via USB Type-C | |
Firmware Upgradeable | Sidus Link | |
Wireless Operating Range (Bluetooth) | ≤80m / ≤262.5ft | |
Screen Type | TFT | |
IP Rating | IP20 | |
Cooling Method | Passive Cooling | |
USB-C Charging Cable Length | 1.1m / 43.31in | |
Dimensions | Fixture | φ42 x 300mm / φ1.65 x 11.81in |
What's Included
1 x amaran PT1c
1 x USB Type-C Charging Cable (1.1m)
1 x Carrying Pouch
