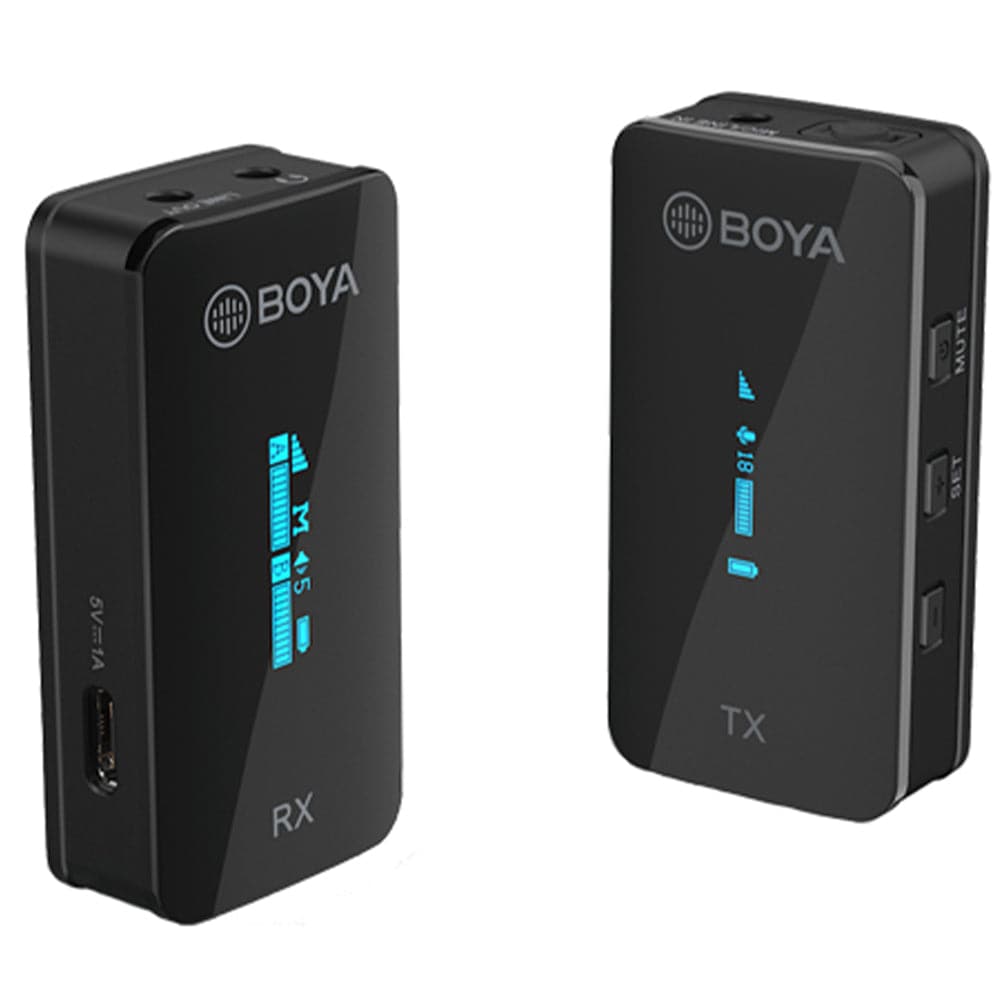

The BOYA BY-XM6-S1, a 2.4GHz adaptive frequency hopping wireless microphone system, consists of one transmitter and one receiver. It’s a perfect sound capturing and delivering solution for one-person vlog, YouTube video, live streaming, interview, recording, etc.
Advanced Technology for Stable Signal Transmission
The BY-XM6 S1 adopts advanced Adaptive Frequency Hopping (AFH) wireless signal transmission technology, which can make the BY-XM6 S1 avoid the disturbed hop frequency parts automatically to realise stable signal transmission in the range of up to 100m (328ft), without obstacle.
Professional Audio Capturing & Delivering
Featuring a high-quality capsule and signal processing circuit with a signal-to-noise over 84dB and a distortion rate less than 0.1%, the BY-XM6 S1 captures and delivers high-quality, clear and low-noise audio.
Ultra-versatile & Easy-to-use Wireless Microphone Kit

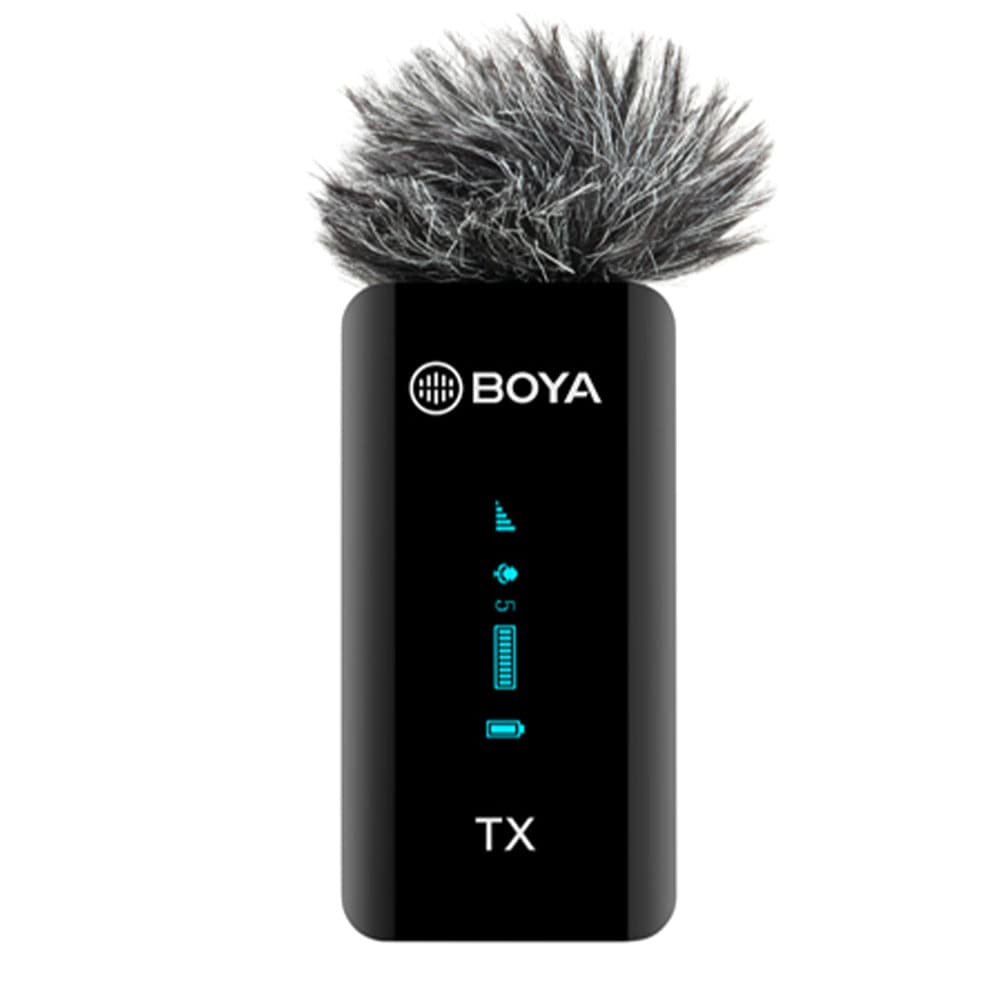

With vivid and easy-to-read OLED display on transmitter and receiver, users can adjust the signal transmission precisely. And the transmitter is also designed with a built-in omnidirectional microphone, so users can clip the transmitter on the collar to pick up sounds, while they can also plug a lavalier microphone into transmitter’s MIC IN jack for sound capturing. Plus, this microphone kit is equipped with both 3.5mm TRS-TRS audio cable and 3.5mm TRS-TRRS audio cable. So it can work well with your DSLR or mirrorless camera, smartphone and computer etc.
Features- Ideal for one-person vlog, YouTube video, live streaming, interview, recording, etc.
- Compatible with DSLR, mirrorless camera, smartphone and computer.
- 2.4GHz wireless signal transmission technology.
- Hi-Fi and low-noise audio processing and delivering system.
- Built with easy-to-use, vivid, and informative OLED display.
- Built-in omnidirectional microphone and a lavalier microphone on transmitter.
- Headphone output jack on receiver for real-time monitoring.
- Stereo and mono outputs are available and switchable on receiver.
- Built-in Li-ion batteries for 7h use on transmitter and 6.5h use on receiver.
- Up to 100m (328ft) operation range without obstacles.
Specifications
Transmitter
Transmission Type | 2.4GHz Digital Frequency |
Modulation | GFSK |
Operating Range (without obstacle) | Up to 328ft (100m) |
RF Output Power | 10mW |
Polar Pattern | Omnidirectional |
Frequency Response | 50Hz-18KHz |
Maximum SPL | Built-in Microphone: 120dB SPL |
Lavalier Microphone: 110dB SPL |
Sensitivity | Built-in Microphone: -39dB |
Lavalier Microphone: -39dB |
SNR | > 84dB |
Power Requirements | Built-in Li-ion Battery or USB-C DC 5V or Charging Contact |
Built-in Battery Life | Approx. 7 hours |
Antenna | PIFA Antenna |
Audio Inputs | 3.5mm TRS MIC/LINE IN Jack or Built-in Microphone |
Weight | Approx. 32g(1.13oz) |
Dimensions | 62.1×31.6×16.5mm |
Operating Temperature | –10°C to 50°C |
Storage Temperature | –20°C to +55°C |
Receiver
Transmission Type | 2.4GHz Digital Frequency |
Modulation | GFSK |
Operating Range (without obstacle) | Up to 328ft (100m) |
Audio Output Connector | 3.5mm Headphone Jack |
3.5mm Headphone Jack |
Audio Output Level | –60 dBV to -20dBV |
Power Requirements | Built-in Li-ion Battery or USB-C DC 5V or Charging Contact |
Built-in Battery Life | Approx. 6.5 hours |
Antenna | PIFA Antenna |
Weight | Approx. 32g(1.13oz) |
Dimensions | 62.1×31.6×16.5mm |
Operating Temperature | –10°C to 50°C |
Storage Temperature | –20°C to +55°C |
What's Included
1 x Boya BY-XM6-S1 Ultra-compact 2.4GHz Wireless Microphone Single Kit
