Upgrade the sound capture quality of your iOS mobile device while keeping your rig simple and straightforward with the BOYA BY-M100D ultracompact condenser microphone. At under 7.6cm long, this diminutive and extremely lightweight mic can be added to your setup and remain nearly unnoticeable. Since it runs on power from your device and has no controls to configure, it provides a truly easy plug-and-play operation.
The body of the mic features an MFi-certified Lightning male connector, which can be plugged directly into the Lightning port of your iPhone, iPad, or iPod touch. This allows the BY-M100D to bypass the need for mounting accessories and audio cables. The mic head rotates up to 180 degrees for quick and optimal positioning. Affix the supplied foam windscreen to lessen noise from breezes and fans.
For iOS Mobile Devices

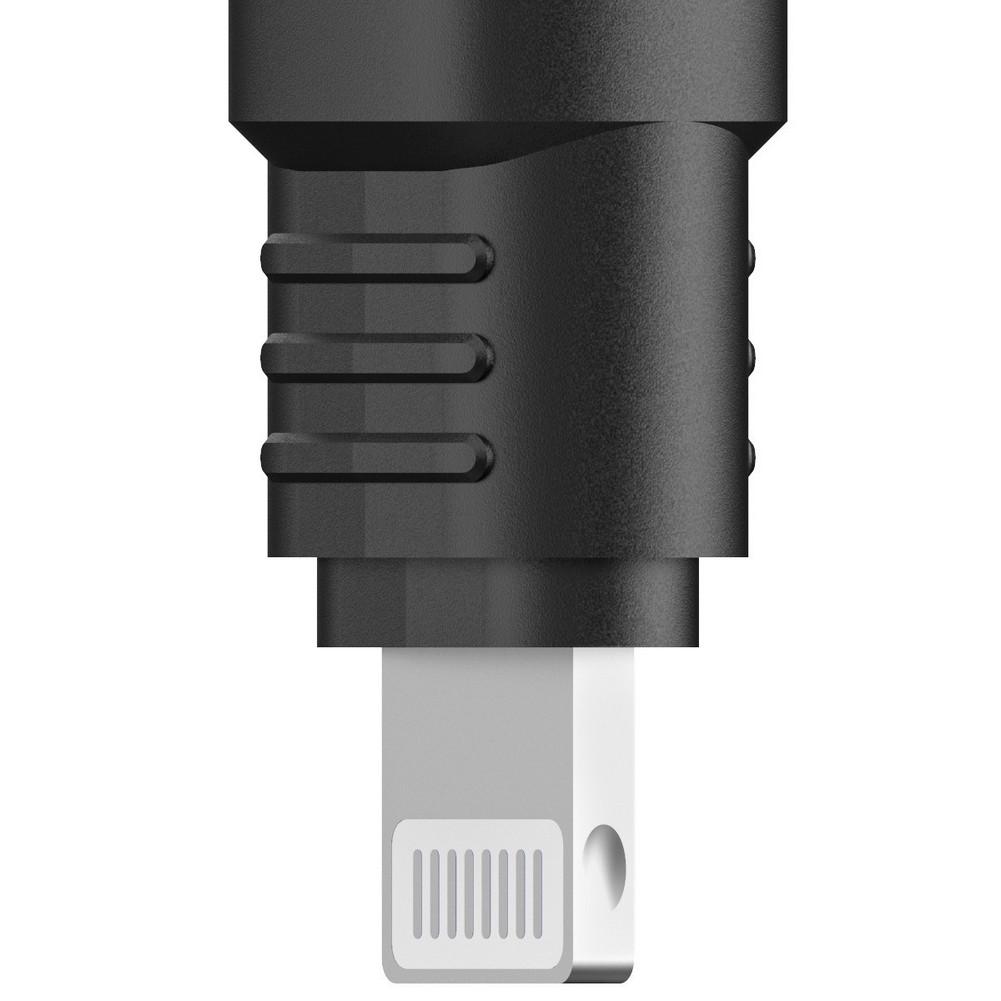

The BY-M100D features an MFi-certified Lightning connector attached to the body of the mic, allowing it to connect directly to the Lightning port of an Apple iPhone, iPad, or iPod touch running iOS 10 or later.
Plug-and-Play Operation
Since it runs on power supplied by your mobile device, the BY-M100D requires no batteries for operation. Also, it has no switches, buttons, or dials to configure.
Omnidirectional Condenser Capsule
By utilizing a condenser capsule with an omnidirectional polar pattern, the BY-M100D microphone is able to capture sound from all directions. Its 50 Hz to 18 kHz frequency response enables full-spectrum recording for speech and ambient sound.
Rotating Head
Thanks to the adjustable head, which rotates up to 180 degrees, the mic is easy to position.
Foam Windscreen
Slip-on the supplied foam windscreen to reduce noise caused by breezes or fans.
Features
Specification
Form Factor | Mobile Device Mic |
Sound Field | Mono |
Operating Principle | Pressure Operated |
Capsule | Electret Condenser |
Polar Pattern | Omnidirectional |
Orientation | End Address |
Circuitry | Solid-State |
Pad | None |
High-Pass Filter | None |
Tone Adjustment | None |
Indicators | None |
On-Board Controls | None |
Windscreen | Foam (Included) |
Frequency Range | 50 Hz to 18 kHz |
Sensitivity | -36 dBV/Pa at 1 kHz |
Signal-to-Noise Ratio | 65 dB A-Weighted |
Output Connectors (Digital) | 1 x Lightning Male (MFi Certified) |
Headphone Connector | None |
Operating System Support | iOS, iPadOS |
Mobile Device Compatibility | iPhone |
Available Port | Lightning |
Bus Power | Lightning |
Operating Voltage | Not Specified by Manufacturer |
Mounting | Direct Connection to Mobile Device |
Dimensions | ø: 0.7 x L: 2.8" / ø: 1.8 x L: 7.2 cm |
Weight | 0.3 oz / 9.5 g |
*Please note Phone not included, shown for illustration purposes only. Please see 'What's Included' section for full product inclusions.
What's Included
1 x BOYA BY-M100D Plug & Play Microphone (Lightning) for iOS Devices
1 x Foam Windscreen
