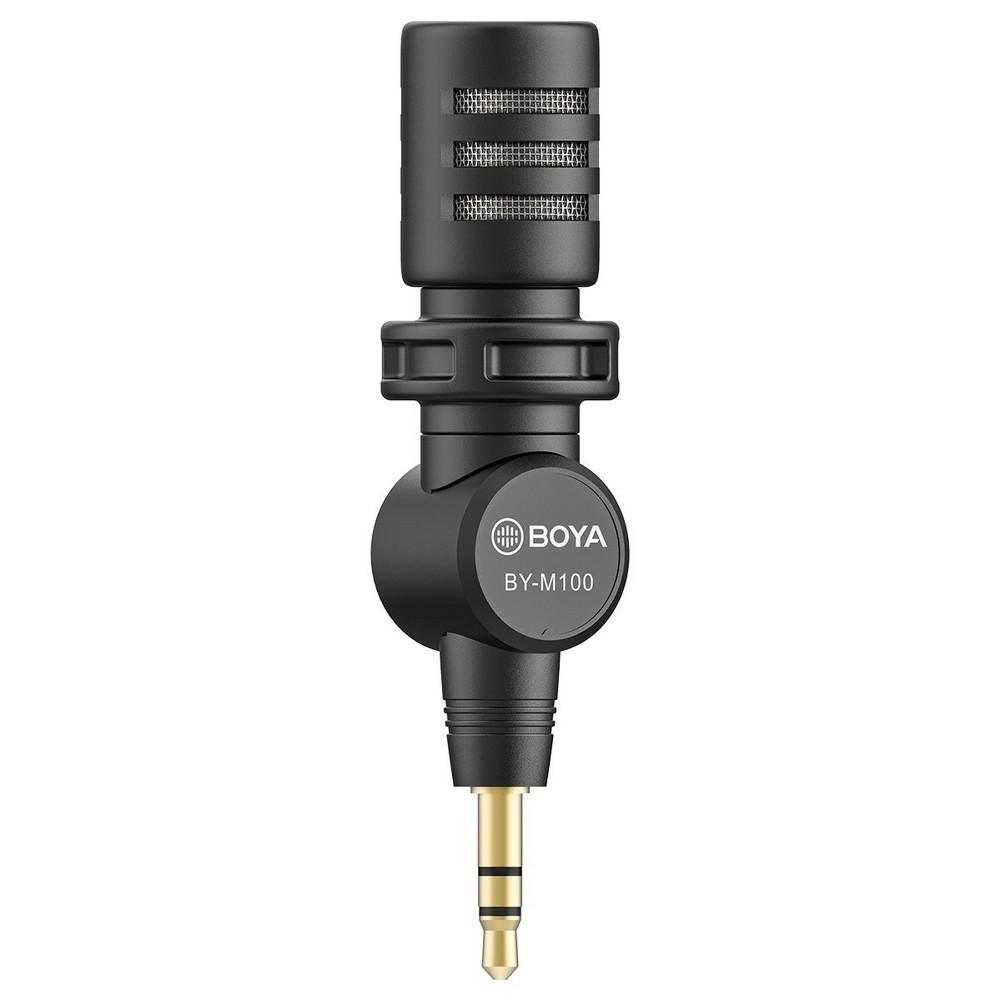

Upgrade the sound capture quality of your action camera, DSLR, or portable audio recorder while keeping your rig simple and straightforward with the BOYA BY-M100 ultracompact condenser microphone. At under 7.6cm long, this diminutive and extremely lightweight mic can be added to your setup and remain nearly unnoticeable. Since it runs on power from your device and has no controls to configure, it provides a truly easy plug-and-play operation.
The body of the mic features a 3.5mm TRS male mini-plug, which can be connected directly to the mini-jack input of your camera or audio recorder. This allows the BY-M100 to bypass the need for mounting accessories and audio cables. The mic head rotates up to 180 degrees for quick and optimal positioning. Affix the supplied foam windscreen to lessen noise from breezes and fans.
For Cameras and Portable Recorders
The BY-M100 features a 3.5mm TRS mini plug attached to the body of the mic, allowing it to connect directly to the input of a DSLR, mirrorless camera, or portable audio recorder.
Plug-and-Play Operation
Since it runs on power supplied by your device, the BY-M100 requires no batteries for operation. Also, it has no switches, buttons, or dials to configure.
Omnidirectional Condenser Capsule
By utilizing a condenser capsule with an omnidirectional polar pattern, the BY-M100 microphone is able to capture sound from all directions. Its 50 Hz to 18 kHz frequency response enables full-spectrum recording for speech and ambient sound.
Rotating Head
Thanks to the adjustable head, which rotates up to 180 degrees, the mic is easy to position.
Foam Windscreen
Slip-on the supplied foam windscreen to reduce noise caused by breezes or fans.
Features
Specifications
Form Factor | Mobile Device Mic |
Sound Field | Mono |
Operating Principle | Pressure Operated |
Capsule | Electret Condenser |
Polar Pattern | Omnidirectional |
Orientation | End Address |
Circuitry | Solid-State |
Pad | None |
High-Pass Filter | None |
Tone Adjustment | None |
Indicators | None |
On-Board Controls | None |
Windscreen | Foam (Included) |
Frequency Range | 50 Hz to 18 kHz |
Sensitivity | -36 dBV/Pa at 1 kHz |
Signal-to-Noise Ratio | 65 dB A-Weighted |
Output Connectors (Analog) | 1 x 1/8" / 3.5 mm TRS Male (on Mic) |
Headphone Connector | None |
Operating Voltage | Not Specified by Manufacturer |
Mounting | Direct Connection to Mobile Device |
Dimensions | ø: 0.7 x L: 2.9" / ø: 1.8 x L: 7.4 cm |
Weight | 0.3 oz / 9 g |
Package Weight | 0.21 lb |
Box Dimensions (LxWxH) | 4.6 x 3.2 x 1.9" |
*Please note: Other accessories not included, please see 'What's Included' section for full product inclusions.
What's Included
1 x BOYA BY-M100 Plug & Play Microphone (3.5mm) for DSLR, Camcorder & Recorder
1 x Foam Windscreen
