Versatile and precise, the INFINIBAR PB12 RGB LED Light Panel from Aputure is a professional choice for dynamic and colourful lighting designs. Featuring 96 pixels of CRI 96/TLCI 98 colour quality throughout its multiple colour modes, the INFINIBAR is designed to be a key light, built directly into sets, or used with its connector ecosystem to create new shapes and designs. The unit's proprietary RGBWW chipset produces colour temperature light of 2000 to 10,000K with full green-magenta adjustment, and it has advanced hue, saturation, and intensity controls for a wide gamut of precise and accurate colours. Connect multiple INFINIBAR panels of any size with up to ten different connectors, available separately, then synchronise them via the Sidus Link app, LumenRadio CRMX, or through wired DMX with an optional USB-C to DMX adapter.
Lightweight at 1.95 kg, the INFINIBAR features a durable aluminium housing that's also mountable with the included Clamp to Baby Pin Adapter, two 1/4-20" female threads, magnetic spacers, and the Straight Connector for the INFINIBAR Rail system. The unit can be powered with a built-in lithium battery that can operate at 100% brightness for 80 minutes or via the included AC adapter. Alternatively, multiple units can share one power supply when linked together with the power-sharing connectors.
Output
Colour
Power
Connect and Control
| Item Type | 1 x LED Light Panel |
| Included Storage Case | 1 x Case |
| Lumens | 2077 |
| Photometrics | 120° at 3200K: 50 fc / 542 Lux at 3.3' / 1 m 130 fc / 1410 Lux at 1.6' / 0.5 m 120° at 5600K: 55 fc / 593 Lux at 3.3' / 1 m 148 fc / 1600 Lux at 1.6' / 0.5 m |
| Colour Temperature | 2000 to 10,000K |
| Colour Modes | RGB, Daylight, Tungsten |
| Colour Accuracy Standard | CRI 96 TLCI 98 SSI 74 at 5600K SSI 85 at 3000K TM-30 Rf 94 TM-30 Rg 100 |
| Cooling System | Passive |
| Dimming | Yes, Built-In Dimmer |
| Expected Lamp Life | 50,000 Hours |
| Beam Angle | 120° |
| Built-In Flash | No |
| Umbrella Mount | No |
| Front Accessory Mount | None |
| Wireless Remote Control Type | Bluetooth Wireless CRMX (LumenRadio) |
| Mobile App Compatible | Yes: Android & iOS App Name: Sidus Link *As of February 2023: Check with manufacturer for the most up-to-date compatibility |
| Wireless Channels | None |
| Wireless Groups | None |
| Wireless Range | 262.5' / 80 m (Bluetooth) |
| Power Source | AC Power (Cable Included) Battery (Built-In) |
| Battery | 1 x Proprietary Rechargeable Lithium (Built-In) • Up to 80-Minute Runtime at 100% Brightness • 150-Minute Charge Time |
| Battery Charging | AC to DC Adapter (Included) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1.5 A |
| DC Input Power | 24 VDC at 1.8 A |
| Included Adapter / Cable | 1 x Edison Plug to Barrel / Coax AC to DC Adapter |
| Inline Switch | No |
| Power Pass-Thru | No |
| Power Consumption | 36.5 W |

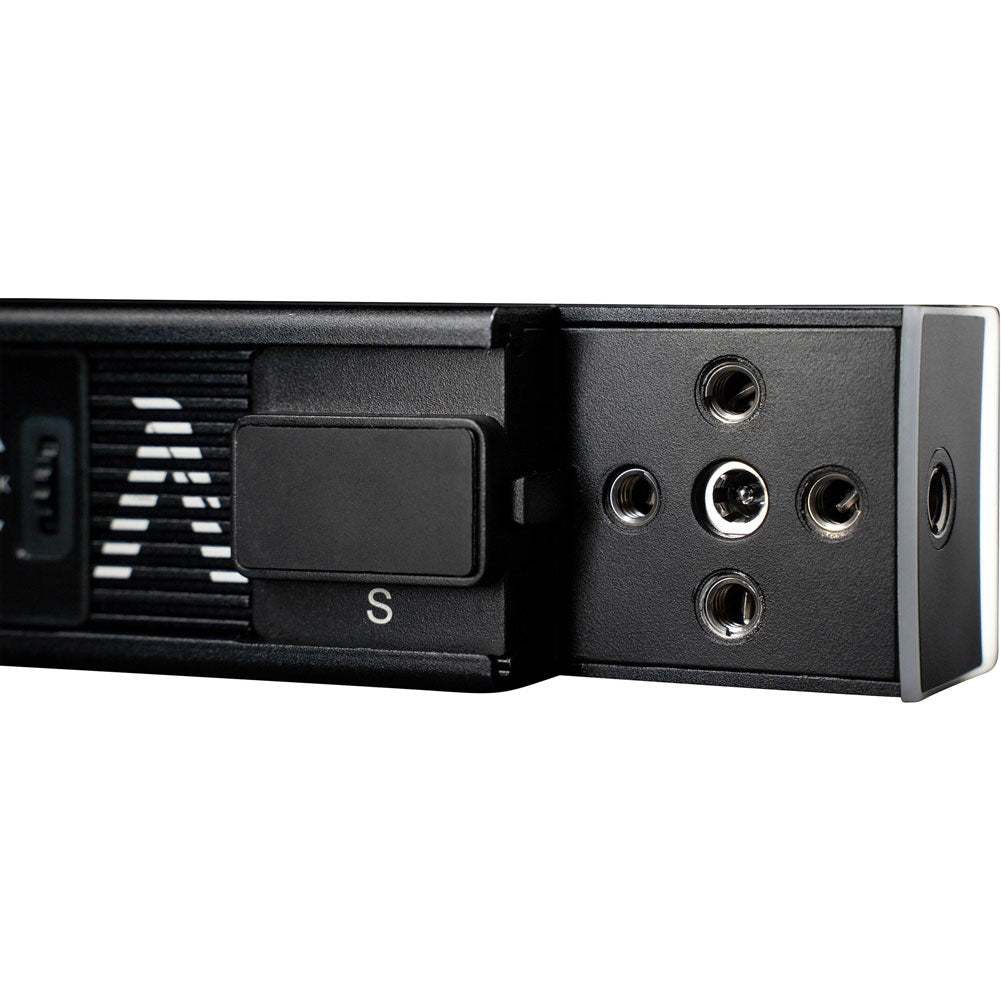

| Fixture Mounting | Support Mount 2 x 1/4"-20 Female Thread |
| Environmental Protection | None |
| Display | None |
| Dimensions | 47.4 x 1.8 x 1.7" / 120.4 x 4.5 x 4.3 cm (Fixture) |
| Weight | 4.32 lb / 1.96 kg (Fixture) |
| Package Weight | 11.5 lb |
| Box Dimensions (LxWxH) | 50.5 x 5.25 x 5" |
What's Included
1x Aputure INFINIBAR PB12 RGB LED Light Panel (4')
1x DC Power Adapter (9.8')
1x AC Locking Power Cable (4.9')

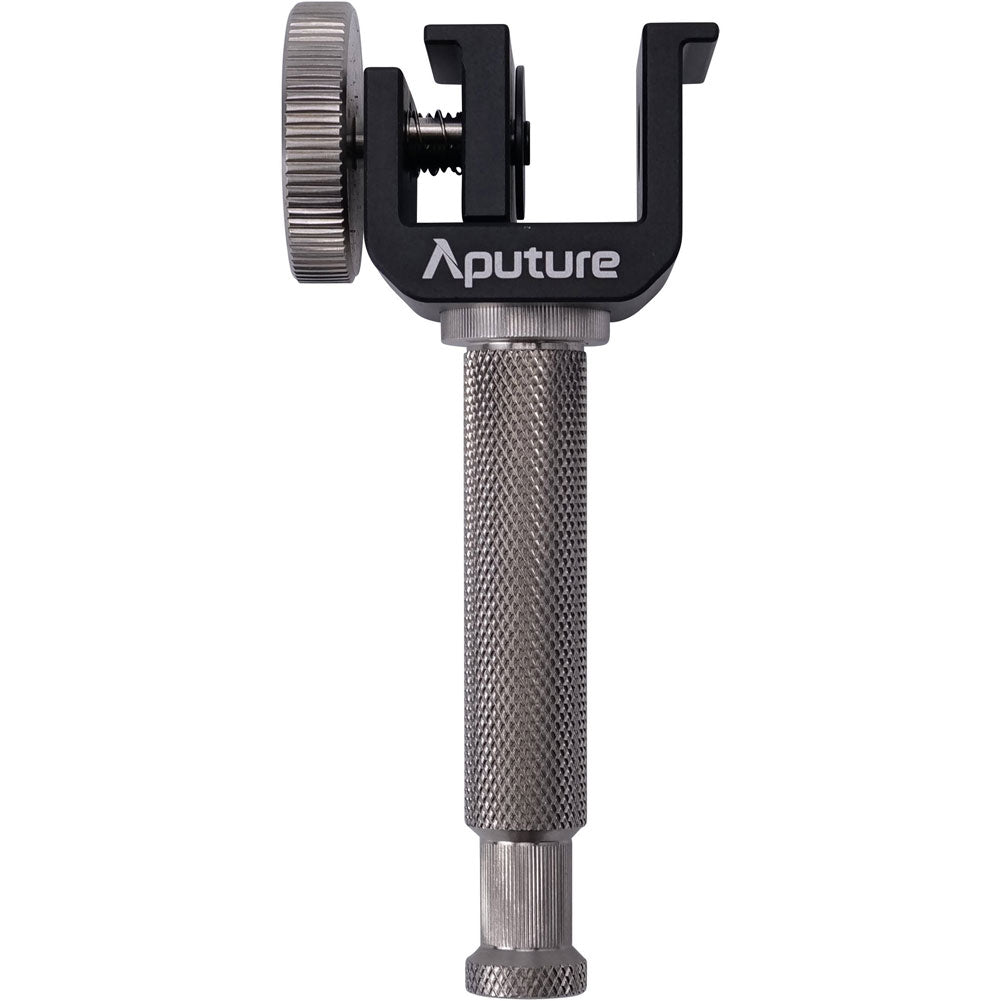

1x Clamp to Baby Pin Adapter
2x Magnetic Spacer
1x Straight Connector
1x Hex Wrench
1x Carrying Case
