The INFINIBAR PB6 RGB LED Light Panel by Aputure is a versatile and precise lighting solution that is perfect for professionals seeking dynamic and colourful lighting designs. With 48 pixels of CRI 96/TLCI 98 colour accuracy across various colour modes, the INFINIBAR is designed to be a key light, seamlessly integrated into sets, or used with its connector ecosystem to create unique shapes and designs. The unit's exclusive RGBWW chipset delivers colour temperature light ranging from 2000 to 10,000K with full green-magenta adjustment, while advanced controls for hue, saturation, and intensity allow for precise and accurate colour reproduction. Easily connect multiple INFINIBAR panels of any size using up to ten different connectors (sold separately), and synchronize them effortlessly through the Sidus Link app, LumenRadio CRMX, or wired DMX with the optional USB-C to DMX adapter.
Weighing a mere 2.2 lb, the INFINIBAR features a durable aluminium housing that can be easily mounted using the included Clamp to Baby Pin Adapter, two 1/4-20" female threads, magnetic spacers, or the Straight Connector for the INFINIBAR Rail system.
Specifications
Colour Features
Power Options
Connectivity and Control
| Item Type | 1 x LED Light Panel |
| Included Storage Case | 1 x Case |
| Lumens | 1110 |
| Photometrics | 2000K 18 fc / 200 Lux at 3.3' / 1 m* *Standardized Measurement Supplied by the Manufacturer 2700K 26 fc / 282 Lux at 3.3' / 1 m* *Standardized Measurement Supplied by the Manufacturer 3200K 26 fc / 288 Lux at 3.3' / 1 m* *Standardized Measurement Supplied by the Manufacturer 4300K 27 fc / 301 Lux at 3.3' / 1 m* 5600K 29 fc / 317 Lux at 3.3' / 1 m* *Standardized Measurement Supplied by the Manufacturer 6500K 30 fc / 328 Lux at 3.3' / 1 m* *Standardized Measurement Supplied by the Manufacturer 7500K 30 fc / 328 Lux at 3.3' / 1 m* *Standardized Measurement Supplied by the Manufacturer 10000K 26 fc / 288 Lux at 3.3' / 1 m* *Standardized Measurement Supplied by the Manufacturer |
| Colour Temperature | 2000 to 10,000K |
| Colour Modes | RGB, Daylight, Tungsten |
| Colour Accuracy Standard | CRI 96 TLCI 98 SSI 74 at 5600K SSI 85 at 3000K TM-30 Rf 94 TM-30 Rg 100 |
| Cooling System | Passive |
| Dimming | Yes, Built-In Dimmer |
| Expected Lamp Life | 50,000 Hours |
| Beam Angle | 120° |
| Built-In Flash | No |
| Umbrella Mount | No |
| Front Accessory Mount | None |
| Wireless Remote Control Type | Bluetooth Wireless CRMX (LumenRadio) |
| Mobile App Compatible | Yes: Android & iOS App Name: Sidus Link *As of February, 2023: Check with manufacturer for the most up-to-date compatibility |
| Wireless Channels | None |
| Wireless Groups | None |
| Wireless Range | 262.5' / 80 m (Bluetooth) |
| Power Source | AC Power (Cable Included) Battery (Built-In) |
| Battery | 1 x Proprietary Lithium (Built-In) • Up to 100-Minute Runtime at 100% Brightness • 120-Minute Charge Time |
| Battery Charging | AC to DC Adapter (Included) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1.5 A |
| DC Input Power | 24 VDC at 0.9 A |
| Included Adapter / Cable | 1 x Edison Plug to Barrel / Coax AC to DC Adapter |
| Inline Switch | No |
| Power Pass-Thru | No |
| Power Consumption | 18 W |
| Fixture Mounting | Support Mount 2 x 1/4"-20 Female Thread |
| Water Resistance | None |
| Display | None |
| Dimensions | 23.8 x 1.8 x 1.7" / 60.4 x 4.5 x 4.3 cm |
| Weight | 2.2 lb / 1 kg (Fixture) |
What's Included
1x Aputure INFINIBAR PB6 RGB LED Light Panel (60cm / 2')

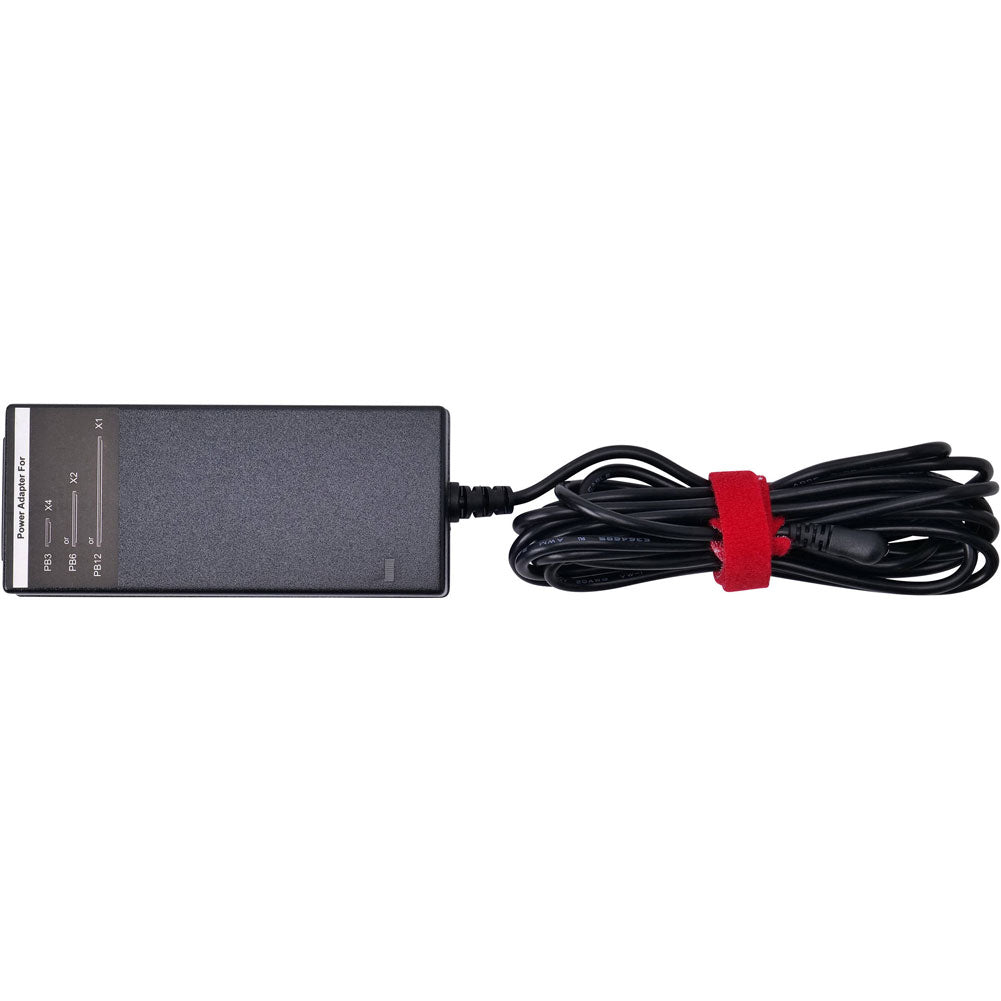

1x DC Power Adapter (9.8')
1x AC Locking Power Cable (4.9')
1x Clamp to Baby Pin Adapter
1x 2 x Magnetic Spacer

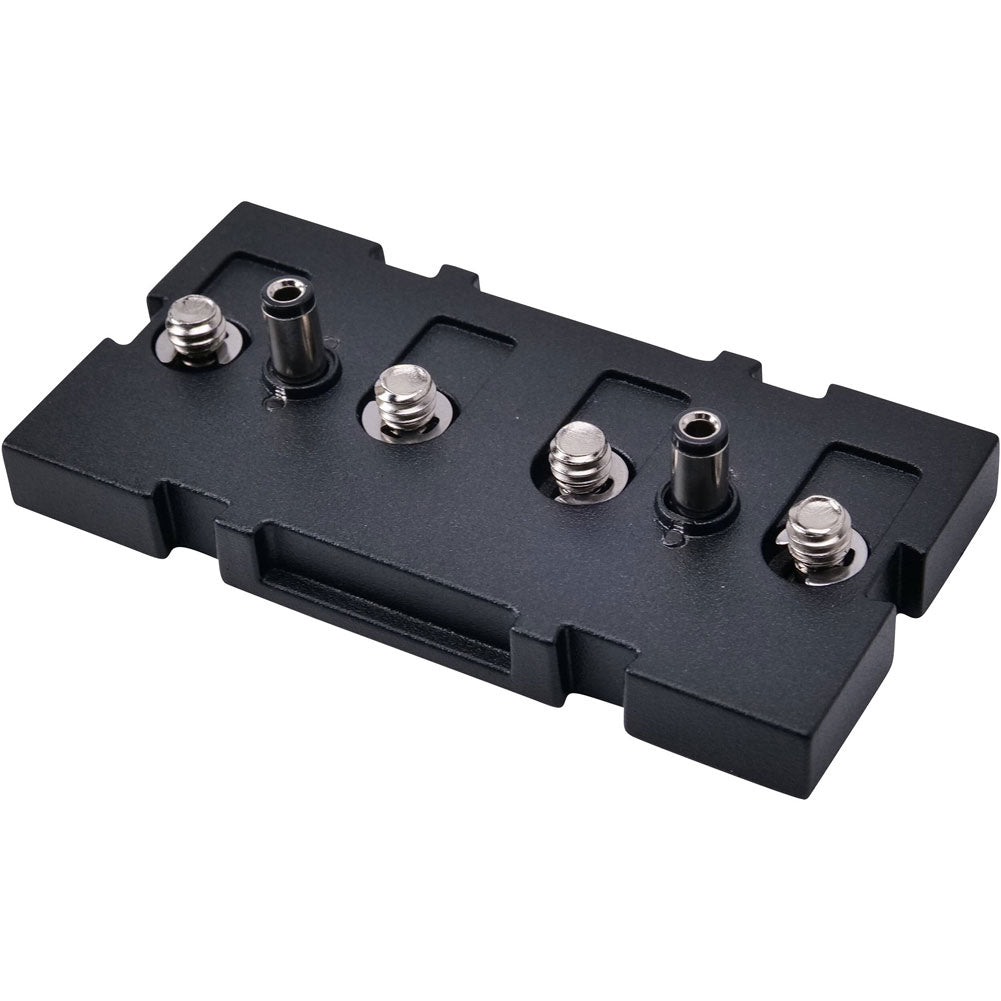

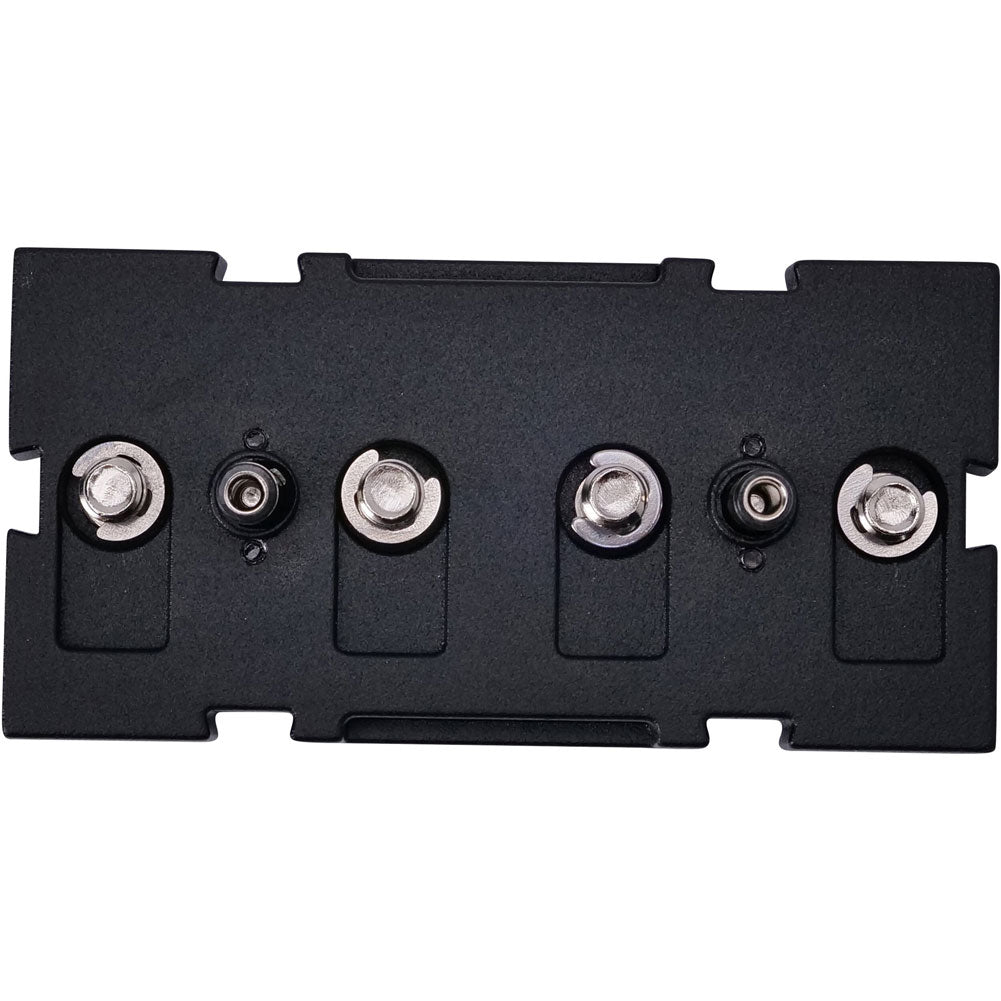

1x Straight Connector
1x Hex Wrench
1x Carrying Case
